spooresVALVE
The spooresVALVE is a Wi-Fi enabled water valve controller that lets you remotely operate solenoid valves. When linked with spooresLEAK, the valve automatically shuts off your water supply when a leak is detected — protecting your home even when you're away.
Product Manual
Features
Wi-Fi connected water valve controller for remote operation
Designed to be separate from valve to fit tight spaces
Compatible with various 12 VDC solenoid valve types
Environmental sensors: temperature, humidity, barometric pressure
User-accessible controls via app for valve operation, alerts, and reporting frequency
Tool-free wiring with push-in connectors
Dual manual buttons for valve control and setup mode
Short-circuit protection for valve circuits
Integrated battery backup
End-to-end data encryption
Pre-drilled mounting points for easy installation
Links with spooresLEAK for automatic shutoff on leak detection
Technical Specifications

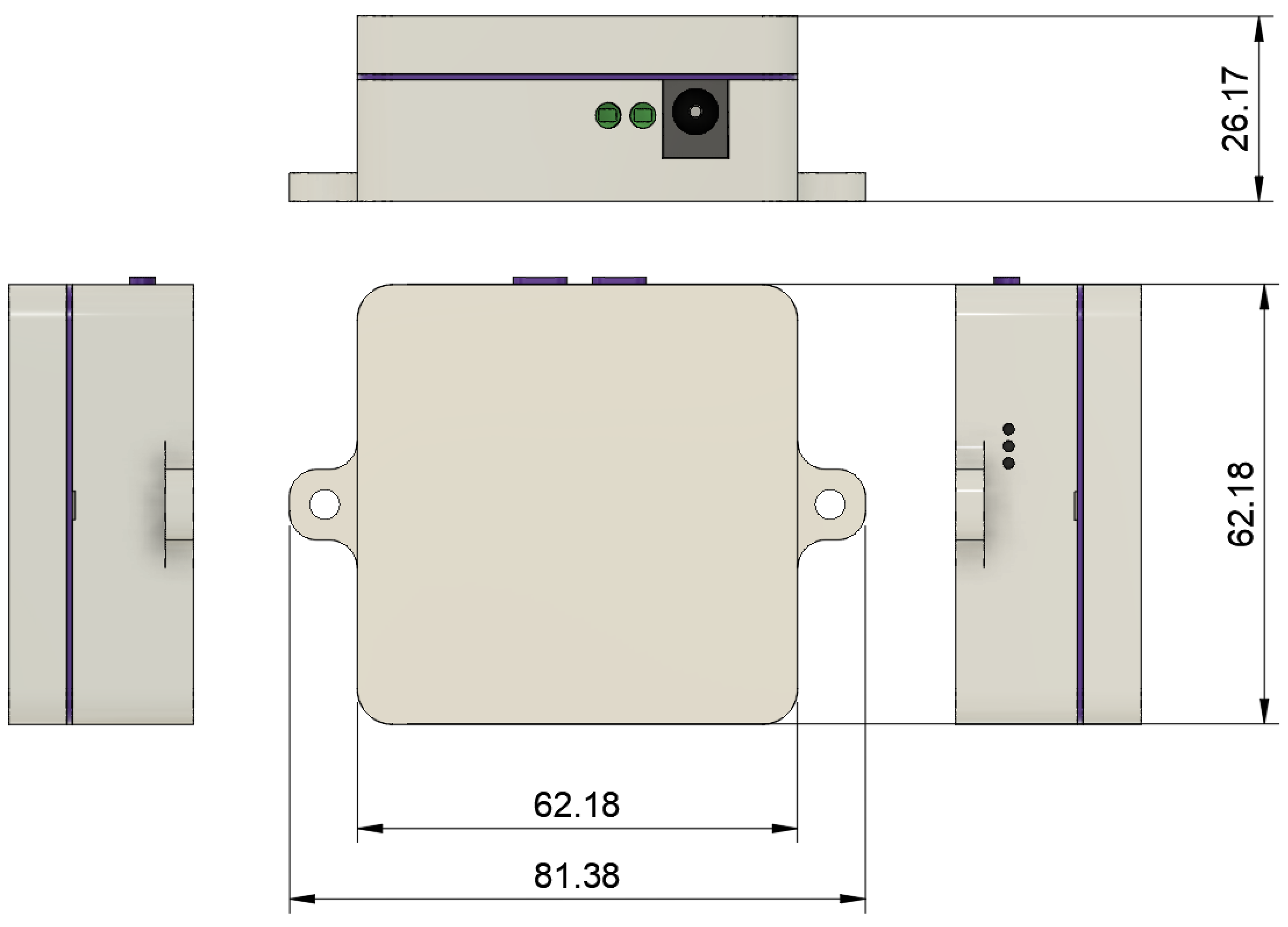

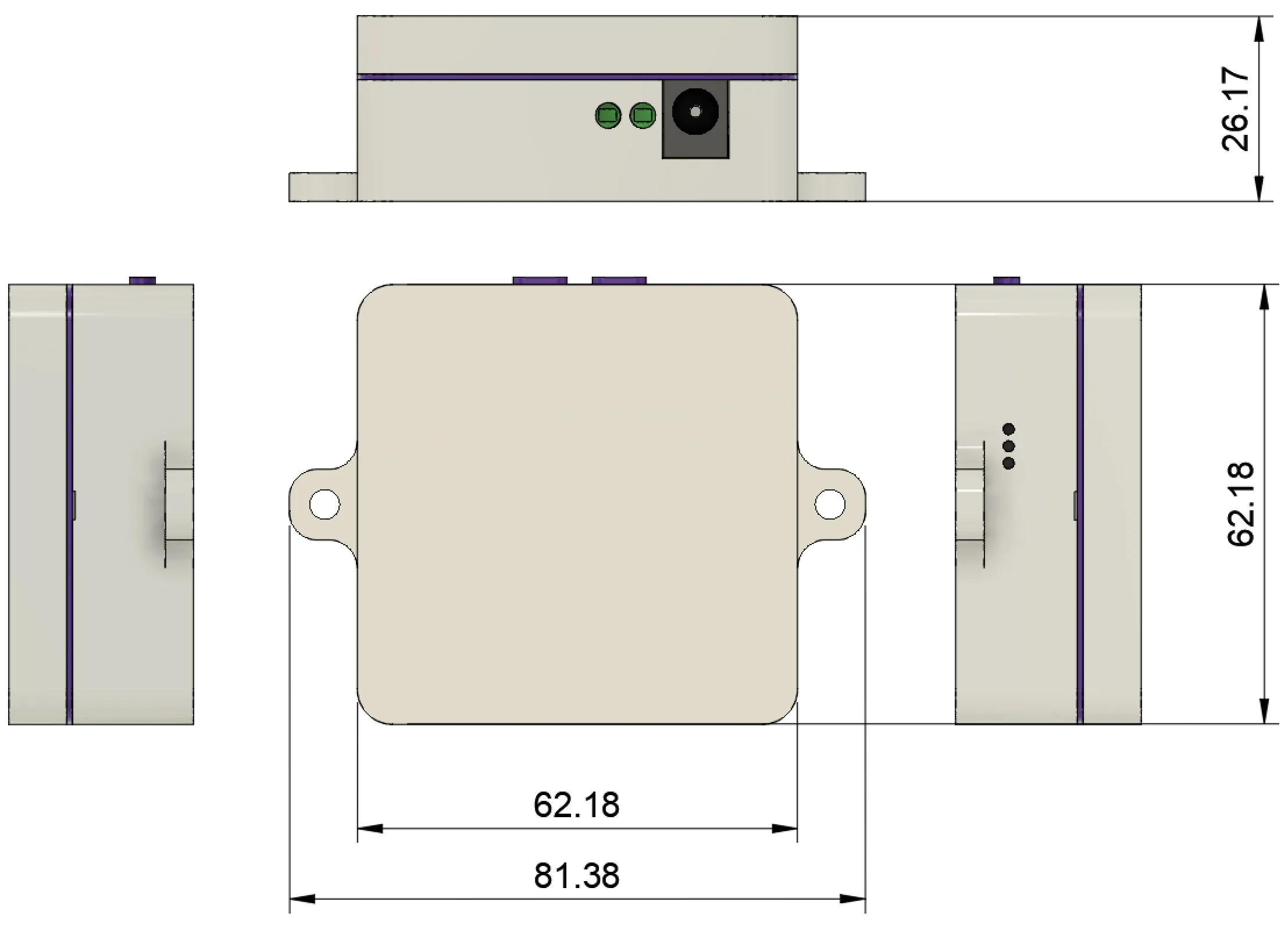

Dimensions 62mm x 62mm x 26mm (2.44" x 2.44" x 1")
Input Voltage 12 VDC
Typical Power 4W
Max Power 60W
Solenoid Compatibility 12 VDC / <2.5A
Wi-Fi 802.11 b/g/n, 2.4GHz
Gallery
